Mondraker Arid Carbon

Mondraker Arid Carbon
This item is currently not available.

Details

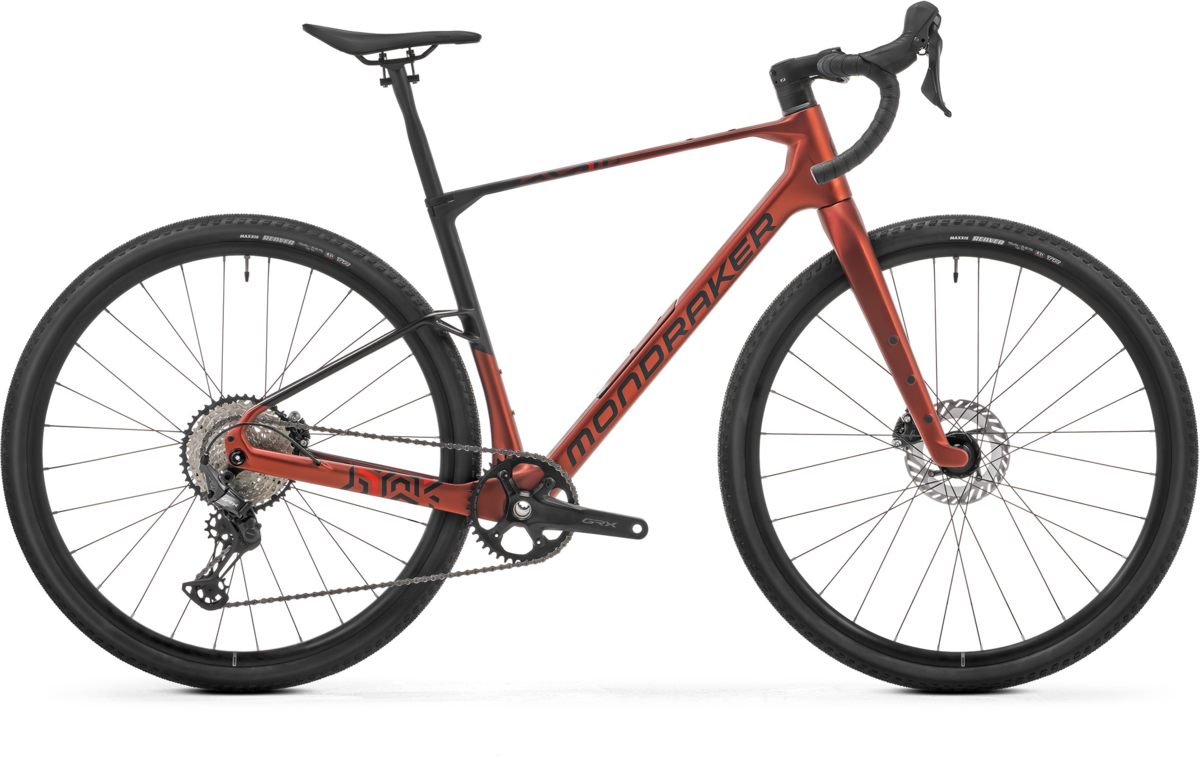

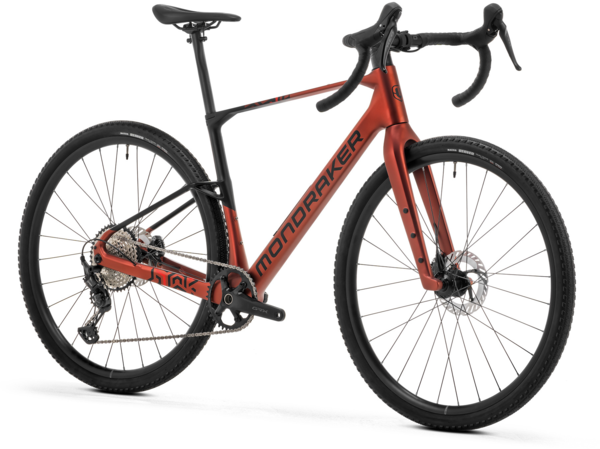

Arid Carbon is the base model and is the only build to come with a Shimano drivetrain and brakes. The Shimano gravel-specific GRX RX-610 groupset with a 40-tooth chainring and 12-speed 10-45 cassette keeps shifting smooth and sharp, and Mavic Allroad Disc 25mm wheels come fitted with Maxxis 45mm Reaver EXO 120TPI tires to offer grip and low rolling resistance at the same time. Available in the stunning Earth Red / Black / Flame Red paint scheme.

Sizes:
Frame sizeSmallMediumMedium/LargeLargeX-Large
Seattube length 410 mm 450 mm 480 mm 510 mm 540 mm
Toptube length 520 mm 550 mm 580 mm 600 mm 630 mm
Bottom bracket drop -75 -75 -75 -75 -75
Bottom bracket height 269 mm 269 mm 269 mm 269 mm 269 mm
Chainstay length 425 mm 425 mm 425 mm 425 mm 425 mm
Seat tube angle 73° 73° 73° 73° 73°
Effective seattube angle 74° 74° 74° 74° 74°
Headtube angle 70° 70° 70° 70° 70°
Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
Wheelbase 1003 mm 1035 mm 1067 mm 1089 mm 1121 mm
Headtube length 100 mm 125 mm 145 mm 175 mm 200 mm
Reach 363 mm 386 mm 411 mm 423 mm 446 mm
Stack 548 mm 572 mm 591 mm 619 mm 642 mm
Stem Length 60 mm 70 mm 70 mm 80 mm 90 mm
Fork Height 420 mm 420 mm 420 mm 420 mm 420 mm

Specs

Frame Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Fork Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Rims Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Hubs Front: Mavic, 12x100mm, IS 6 bolts
Rear: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
Spokes Mavic Steel double butted flat spokes
Tires Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7
Chainrings Shimano 40T, direct mount, steel
Brakes Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Brake Levers Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.
Handlebars OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Tape/Grips OnOff HEX Bartape
Stem Onoff Semi-Integrated, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Headset Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Seatpost Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle FIZIK Terra Argo X5 140mm
Pedals Sold Separately

* Subject to change without notice.
