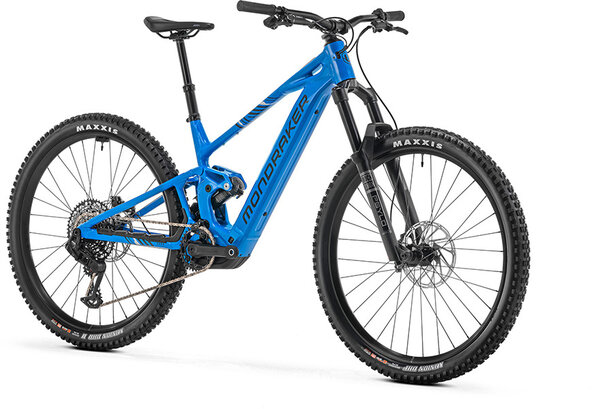

Mondraker SLY R
Details
ACCESS YOUR SLY
Discover the world of SLY and enjoy the best cost performance.
The R model is equipped with RockShox suspension with a 160 mm Psylo Gold RC fork, combined with a RockShox Deluxe Select+ shock. The SRAM DB8 Stealth 4-piston brakes give you optimal control, while the Mavic 29" wheels with a 30 mm width E-CrossRide 29 offer reliability and robustness.
ONOFF components complete the set with a handlebar, grips and stem from the S3 range, as well as a Pija seatpost from the S6 range, available in lengths from 140 mm to 210 mm depending on the frame size.
The SLY R is available in a beautiful Marlin Blue colorway.
Frame
6061 Alloy Stealth Evo , hydroformed tubing, updated Zero Suspension System , 150mm trail, Forward Geometry , internal battery, 12x148mm Boost rear axle, tapered head tube, one-piece Monobloc upper link, HHG internal cable routing, maximum capacity sealed bearings, 15mm oversized axle, exclusive plastic engine guards.
Sizes
S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
Rear shock absorber
Rockshox Deluxe Select+, 185x55mm, Trunnion high mount, 30x8mm lower rings
Shock absorber settings
Compression L, degressive rebound, 4 tokens
Fork
RockShox Psylo Gold RC, 160mm, 3 Positions, Debon Air, tapered steerer, 15x110mm Boost axle, 35mm steel stanchions, 44mm offset. Adjustments: Low-speed compression adjust to lockout, rebound, air preload
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealed cap without blocklock
Gallows
ONOFF S3 30mm 0º, forged 6061 alloy, 31.8mm bore
Hanger
ONOFF S3 1.0 alloy 6061, camber: 25 mm, width: 800 mm, 8º bend, 5º rise, 31.8 mm bore. Size L and XL: camber 1.5
Handles
ONOFF Forest, lock-on CNC, 135 mm
Seat post
ONOFF Pija internal dropper, diameter 31.6mm, 1X remote controller with bearing, size S: 140-115mm (388-235mm), size M: 160-135mm (428-255mm), size ML: 180-155mm (468-275mm), size L: 210-185mm (528-305mm), size XL: 210-185mm (528-305mm)
Saddle
Fizik Terra Aidon X5 145 mm
Front brake
Sram DB8 Stealth, 4-piston caliper, Centerline 200mm IS 6-bolt single-piece rotor, organic-on-steel pads
Rear brake
Sram DB8 Stealth, 4-piston caliper, Centerline 200mm IS 6-bolt single-piece rotor, organic-on-steel pads
Brake lever
Sram DB8, SwingLink and shifter pivot bearings, tool-free reach and contact point adjustment
Rims
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless compatible, 28 spokes
Rays
Mavic J-curve, double reinforcement, contactless lacing
Front hub
Mavic, Boost 15x110 mm, IS 6 holes
Rear hub
Mavic, Boost 12x148 mm, Ratched ID360 system, IS 6 bolts, HG freehub
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless compatible, 3C MAXX GRIP rubber, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 WT, tubeless compatible, 3C MAXX TERRA rubber, EXO+ protection, 60TPI, folding bead
Crank
e thirteen Helix Core E Spec Plus, all sizes: 160mm
Trays
Sram X-Sync 2 Eagle 34T, Steel, Narrow Width, 104 BCD
Chain
Sram GX Eagle Type T, 12s, Powerlock
Rear derailleur
Sram S1000 Eagle AXS T-Type, 12s
Gear Shift Levers
Sram Eagle AXS Pod MMX, 12s
Cassette
Sram XS-1270, 10-52T, Type T, 12s
Weight
46.1 lbs
Screen
Purion 400 / Bosch Mini Remote / Bosch System Controller
Engine
Bosch Performance Line SX (20 Mph) GEN4 SMART SYSTEM Diagonal, Large
Battery
Bosch Compact Powertube 400Wh
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Marlin Blue / Large | 010.25US226 | 210000061577 |
