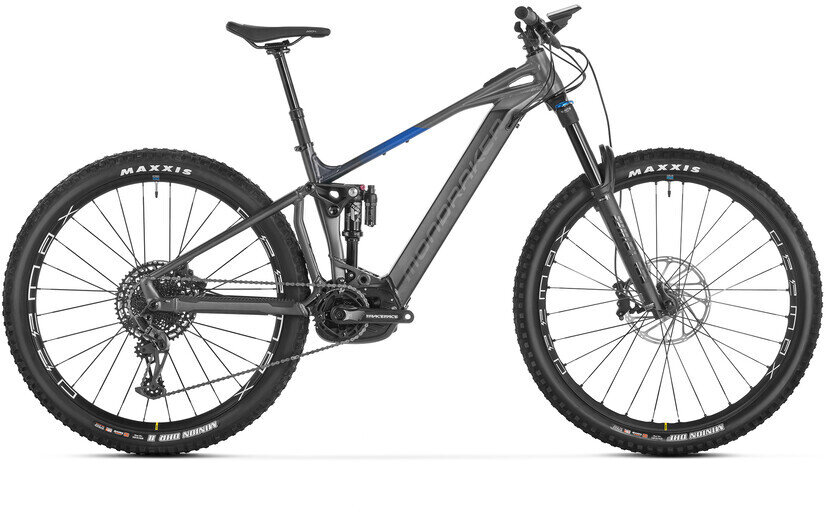

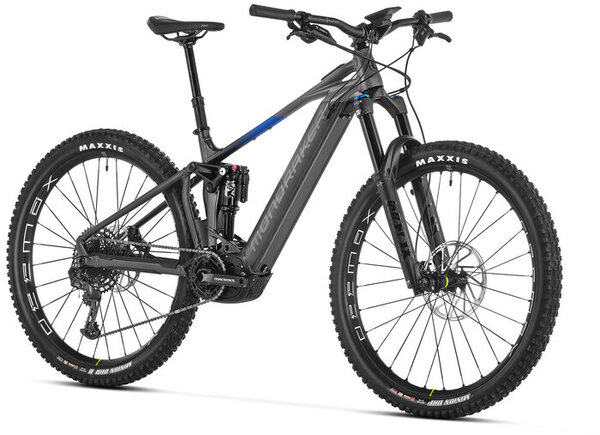

Mondraker Crafty R

Mondraker Crafty R
  • Color: Vortex Grey
  • Color: Vortex Grey
  • Color: Vortex Grey
  • Color: Flame Red
  • Color: Flame Red
  • Color: Flame Red
$9,499.00
Color: Vortex Grey
Size: Select size
Please select options Unavailable
This item can be purchased online and picked up at your convenience.

Details

We love our eMTB enduros.

They’re exactly what we wanted them to be, they’ve got our Mondraker DNA built in, and they’re what most of us really need from a bike as well. They help us to disconnect from our day to day lives and connect us with sport and nature. In 2023 our eMTB enduros will once again be worldwide benchmarks in their field, and as an added bonus come fitted with the latest upgrades from Bosch or Shimano depending on the model. The CRAFTY family launches the Bosch Smart System motor combined with the all-new minimalist Mini Remote wireless remote control and toptube integrated System Controller. The latter displays the mode you’re in, your remaining battery level and it even lets you change your assistance mode without having to fit the KIOX display if you choose not to.

Frame: Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

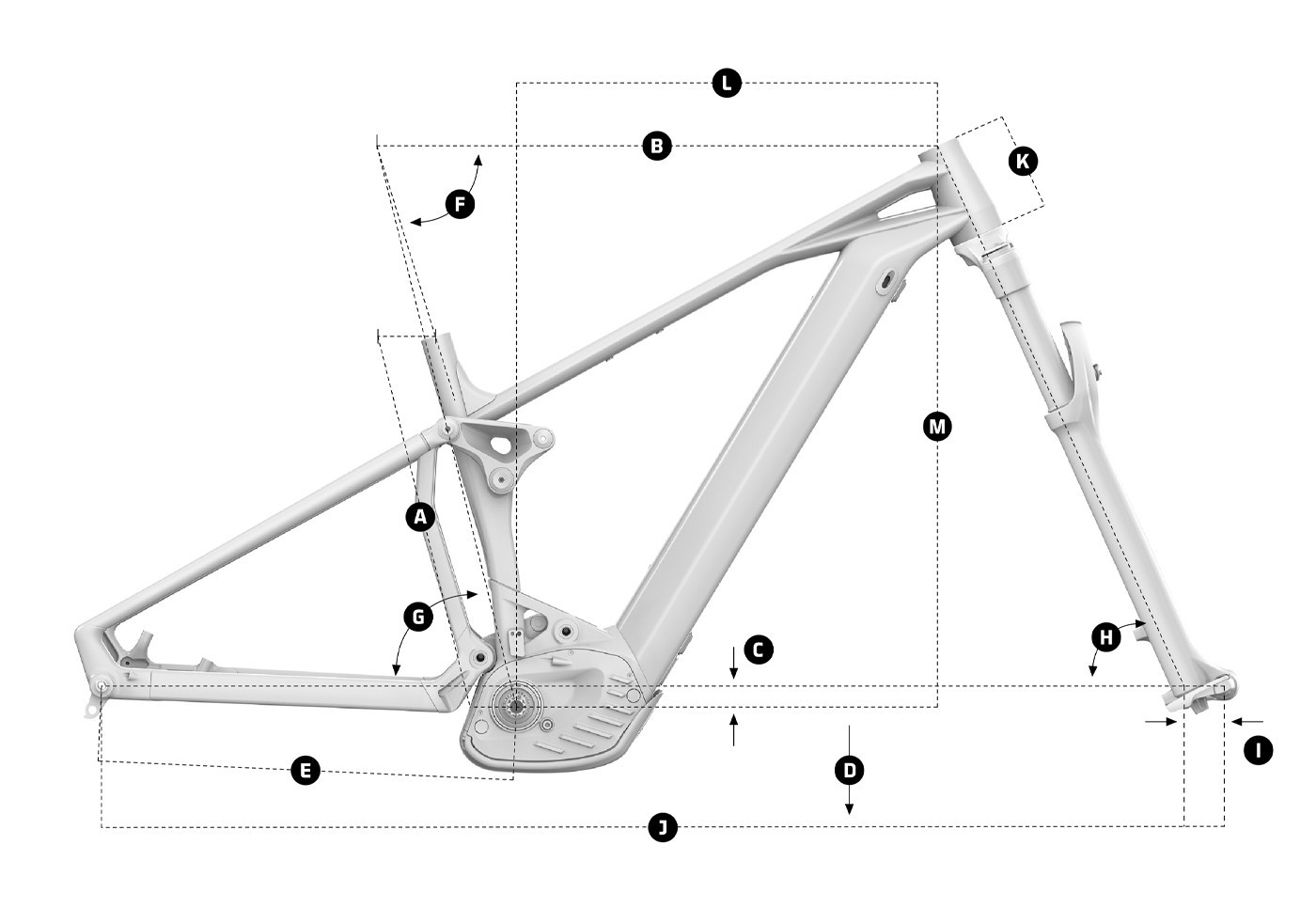

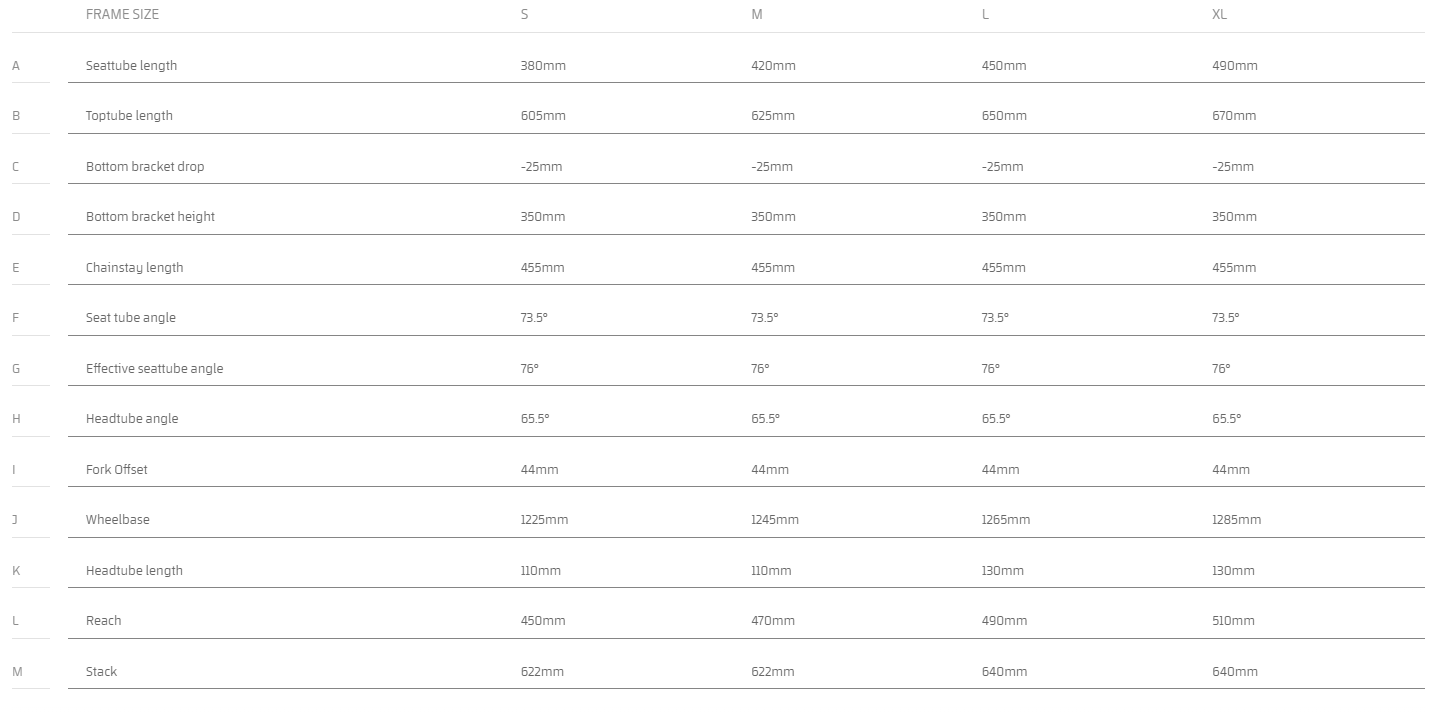

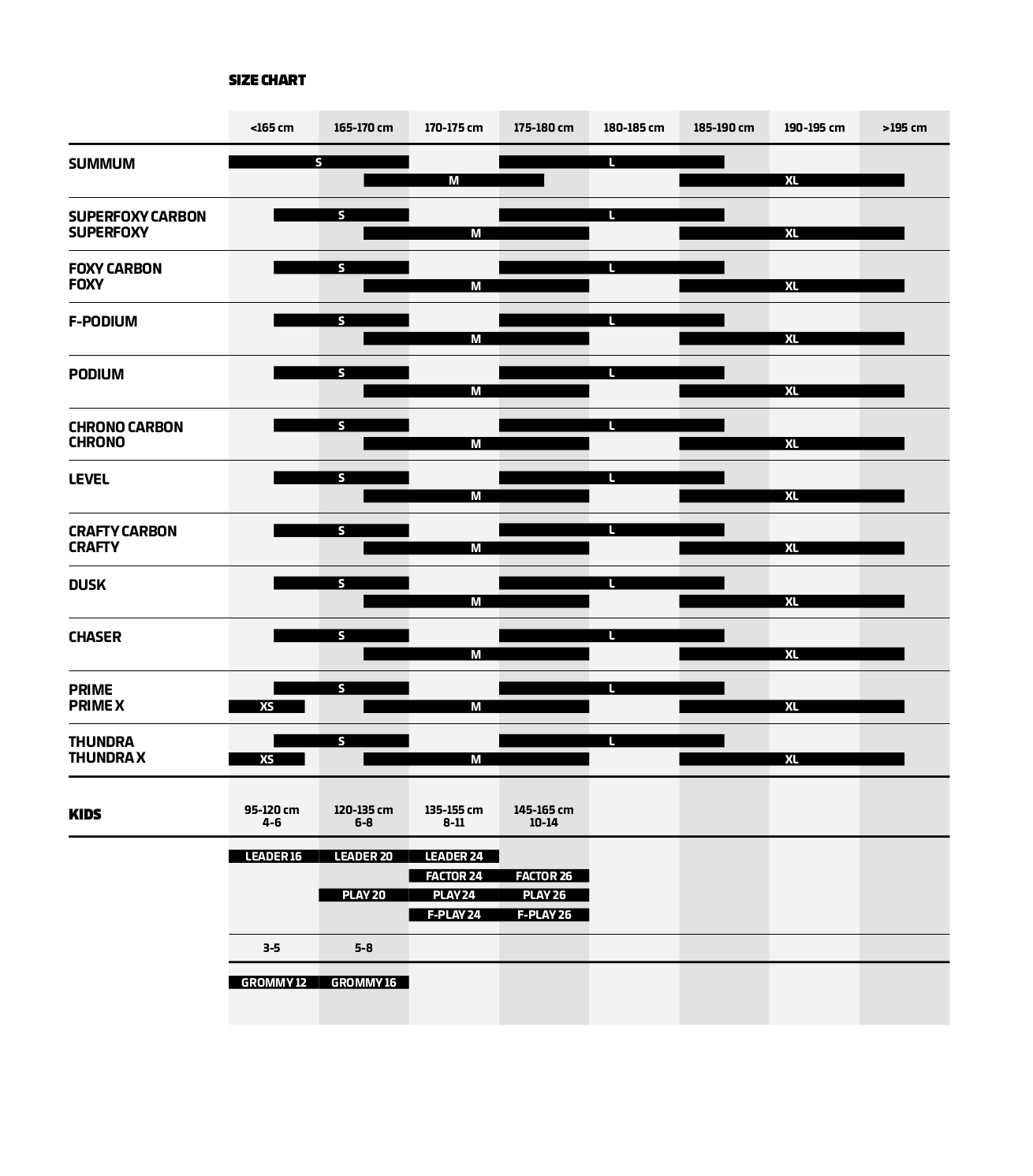

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear Shock: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock Settings: medium compression, medium rebound, air volume spacer 0.2

Fork: Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips: Onoff Desert, 1lock-on, 135mm

Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle: FIZIK Terra Aidon X5 145mm

Front Brake: Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear Brake: Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake Lever: Sram DB8, tool reach adjust, lever pivot bushings

Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes: Mavic J-bend double butted, contactless lacing

Front Hub: Mavic, Boost 15x110mm, IS 6 bolts

Rear Hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts

Front Tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Part Numbers

Option UPC Store SKU
Vortex Grey / Large 8435392887403 210000053377
Vortex Grey / X-Large 8435392885348 210000053378
