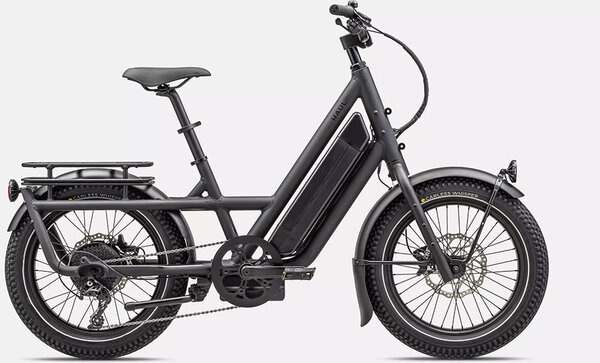

Specialized Globe Haul ST
Details
Whatever you’re into, get more into it with the Specialized Globe Haul ST. It’s down for the ride. With 419 pounds of cargo capacity (rider included) up to 100 km at a time, this fully customizable electric bike has the speed, power, range, and stability to get you wherever you need to go with whatever you need. With a grip of mounting opportunities you can bring the kids, a kayak, and stop on the way home for groceries. Don’t sweat it getting dark on you either. Integrated front and rear lights will have you dialed from dawn patrol to golden hour.
POWERED UP. The rear hub motor will have you zooming up hills with all your gear. Need a little extra boost to make it through an intersection safely? Crank up the power to get up to top speed quick, then dial it back and hit the pedals for max range.
INCLUSIVE. All bodies, all fun. The unique single size frame fits riders comfortably all over the size spectrum. Using the Retül database, the adjustable fit was designed to be perfect for you. Make it longer here, shorter there, and you're ready to ride comfortably. The low center of gravity means it’s easy to handle for a newcomer or a pro, loaded up or loaded down.
READY TO ROLL. The Globe Haul ST is ready to rock straight out of the box with an included MIK-compatible rear rack, full coverage fenders, integrated lights and center stand. D.I.Y. yourself into gear-nirvana, with a whole host of Globe accessories compatible with the auxiliary mounting points… It’s your Globe, we’re just living in it.
• 500w rear hub motor delivers enough power to get you and all your gear up steep hills and all the way across town at top speed. The 772wh battery provides up to 100 km of range at the lower levels of pedal assist.
• 419 lbs carrying capacity, rider included.
• All rear racks have been updated to 132 lbs (60kg) max weight capacity - even those labeled ‘40kg’. So get Haulin’.
• Unique, single-size frame fits riders from around 4’5” all the way up to 6'4". The telescoping seatpost has over 13 inches of adjustability, and the quill stem can extend almost six inches. It provides a comfortable ride to almost everyone measured in our Retül database.
• 20” diameter wheels help keep weight low to the ground for improved stability. The extra wide 3.5” Carless Whisper tires provide comfort and traction on any terrain and feature a 3-ply casing for superior flat protection.
• A lifetime warranty on the frame, and two year e-system warranty will keep your bases covered. With the Specialized network of service centers and superior customer service, you’re never on your own.
| Frameset | |
| Frame | Haul ST Premium Aluminum, Post mount disc brake, fender/rack mounts |
| Seat Binder | Alloy, Bolt-type, 39mm |
| Suspension | |
| Fork | Globe Steel, Post mount disc brake, fender/rack mounts |
| Cockpit | |
| Stem | Globe, cargo 1.5X150mm quill stem |
| Handlebars | Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width |
| Grips | Globe closed end slip on type, 155mm |
| Saddle | Specialized Body Geometry Comfort Gel |
| SeatPost | Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm |
| Brakes | |
| Front Brake | Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor |
| Rear Brake | Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor |
| Drivetrain | |
| Rear Derailleur | microSHIFT, short cage, 9-speed |
| Shift Levers | microSHIFT Advent, 9-speed |
| Chain | KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™ |
| Cassette | SunRace, 9-Speed, 11-36t |
| Crankset | Forged alloy arm, alloy chainring guard, 160mm |
| Chainrings | 50T |
| Bottom Bracket | Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor |
| Wheels & Tires | |
| Rims | 20'', double-wall alloy, 50X20mm, 36h |
| Front Hub | Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h |
| Spokes | Stainless, 13g/2.3mm |
| Front Tire | Carless Whisper Reflect, 20X3.5 |
| Rear Tire | Carless Whisper Reflect, 20X3.5 |
| Inner Tubes | Schrader, 32mm valve |
| E-Bike | |
| Motor | Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h |
| UI/Remote | Globe handlebar remote HMI, State of charge, Ride Mode display, USB plug, BLE |
| Battery | Globe external battery, 772Wh, UL 2271 certified, IPX7 |
| Charger | Globe charger, 48V System w/ Globe system charger plug, AC power cord included |
| Wiring Harness | Globe wiring harness, IP65 |
| Accessories | |
| Pedals | Specialized Flat pedal |
| Headlight | Globe Cargo Drive, 1500 Lumen, remote switch, multiple modes. |
| Taillight | Globe Cargo Drive, 50 Lumen |
| Kickstand | Globe, Short Tail, center mount |
| Rack | Globe, Short Tail, MIK HD interface, rail system |
| Fenders | Globe Cargo fenders, w/headlight mount |
| Bell | Brass bell |
| Weight | |
| Weight | 35.0kg (77 lb, 2.6 oz) |
| Weight Size | One Size |
| One Size | |
| Crank Length | 160mm |
| Handlebar Width | 700mm |
| Stem Length | 45mm |
| Saddle Width | 200mm |
| Seatpost Length | 585mm |
| Reach | 345mm |
| Head-Tube Length | 292mm |
| Head-Tube Angle | 70° |
| B-B Height | 285mm |
| B-B Drop | 5mm |
| Trail | 47mm |
| Fork Length (full) | 372mm |
| Fork Rake/Offset | 55mm |
| Front-Center | 624mm |
| Chain-Stay Length | 465mm |
| Wheelbase | 1089mm |
| Top-Tube Length (horizontal) | 600mm |
| Bike Stand-Over Height | 511mm |
| Seat-Tube Length | 366mm |
| Seat-Tube Angle | 68° |
| Stack | 610mm |
| Seat height - Max | 852mm |
| Seat height - Min | 517mm |
| Bar height form ground - Max | 1192mm |
| Bar height from ground - Min | 1051mm |
